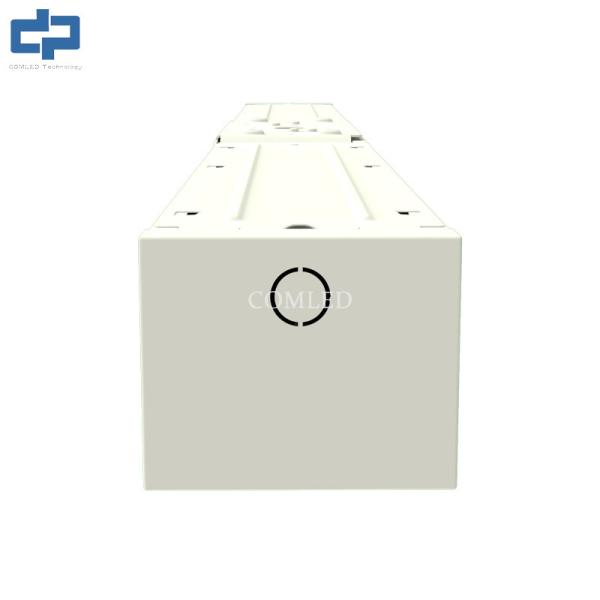

4FT 18W T8 Single Tube Light Fixture , Dust - Proof LED Tube Light Fitting 1x18W , Surface Mount
4FT 18W T8 Single Tube Light Fixture offers a versatile and energy-efficient solution for a variety of commercial and industrial settings. Designed with a steel housing and white coating, this dust-proof LED fixture is perfect for replacing traditional fluorescent systems with modern, reliable LED technology. Its surface mount design ensures ease of installation, while the high-transmittance polycarbonate diffuser guarantees excellent light distribution. Ideal for use in parking lots, warehouses, corridors, and more, this fitting is available in both standard and sensor-dimming versions to suit different needs.
Key Features:
Dust-Proof Design: Built to withstand dusty environments with an IP20-rated steel housing and durable polycarbonate diffuser, ensuring long-lasting performance.
Microwave Sensor Dimming: An optional 5.8G microwave sensor enables intelligent dimming, allowing energy-saving light control (100%-20%-OFF), perfect for low-traffic areas.
Simple Installation: Featuring an innovative sliding mounting system and large terminal block, the fixture allows for hassle-free installation and maintenance without the need for rewiring.
Emergency Functionality: Equipped with a LiFePO4 battery option that provides over 3 hours of emergency lighting, offering reliability during power outages.
High Efficiency: With a luminous efficacy of 100-120lm/W and a beam angle of 120 degrees, this fixture delivers bright, even lighting with reduced energy consumption.
T8 LED Tube Light Fixture(J2-series) Specification Parameter Data:
| Model | Input voltage | Watt | Sensor dimming standby | Emergency |
| ZL-JTBLP9-2FT-CN | AC110V or 230V | 1*9w | x | x |
| ZL-JTBLP18-4FT-CN | AC110V or 230V | 1*18w | x | x |
| ZL-JTBLP18-2FT-CN | AC110V or 230V | 2*9w | x | x |
| ZL-JTBLP36-4FT-CN | AC110V or 230V | 2*18w | x | x |
| ZL-JTBLP9-2FT-CS | AC110V or 230V | 1*9w | 100% / 20% /OFF | x |
| ZL-JTBLP18-4FT-CS | AC110V or 230V | 1*18w | 100% / 20% /OFF | x |
| ZL-JTBLP18-2FT-CS | AC110V or 230V | 2*9w | | x |
| ZL-JTBLP36-4FT-CS | AC110V or 230V | 2*18w | | x |
| ZL-JTBLP9-2FT-CE | AC110V or 230V | 1*9w | x | >3hrs@3.6W |
| ZL-JTBLP18-4FT-CE | AC110V or 230V | 1*18w | x | >3hrs@3.6W |
| ZL-JTBLP18-2FT-CE | AC110V or 230V | 2*9w | x | >3hrs@3.6W |
| ZL-JTBLP36-4FT-CE | AC110V or 230V | 2*18w | x | >3hrs@3.6W |
| ZL-JTBLP9-2FT-CES | AC110V or 230V | 1*9w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-JTBLP18-4FT-CES | AC110V or 230V | 1*18w | 100% / 20% /OFF | >3hrs@3.6W |
| ZL-JTBLP18-2FT-CES | AC110V or 230V | 2*9w | | >3hrs@3.6W |
| ZL-JTBLP36-4FT-CES | AC110V or 230V | 2*18w | | >3hrs@3.6W |
| Note: x -No this function |
T8 LED Tube Light Fixture(J2-series) Specification Details:
| Model | ZL-JTBLP9-2FT | ZL-JTBLP18-2FT | ZL-JTBLP18-4FT | ZL-JTBLP36-4FT |
| Rated Power (Led tube) | 1x9W | 2x9W | 1x18W | 2x18W |
| Install | Surface Mount/Suspended/Linkable |
| Protection Rating | IP20 |
| Housing | Steel with Coating |
| Optics | Polycarbonate Milky Diffuser |
| Connection Type | Terminal Block or Linkable |
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) |
| Warranty | 3 Years(battery for 1 year) |
| Dimming Option | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
| Emergency Option | 3 Hours+ @3W LiFePO4 Battery |
| PHOTOMETRIC |
| Luminous Efficacy | 100-120lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
| ELECTRICAL |
| Input power Supply | AC200-240V, 50/60Hz |
| Power Factor | > 0.9 |
| Lifespan@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Dimensions | 650*113*96mm | 650*113*96mm | 1260*113*96mm | 1260*113*96mm |
T8 LED Tube Light Fixture Product Application
T8 LED Tube Light Fixture Maintenance:
Removable Back Plate
 | Quick Installation
 |
Huge terminal block for holding multiple wires
 | Plug and play connection
 |
Special housing for quick replace battery
 | |
T8 LED Tube Light Fixture Size:
